Media & Entertainment

Unleash lightning-fast media storage solutions

The media and entertainment industry is often limited by the performance of its storage and network components, which are frequently overlooked. To solve these issues, Cheetah RAID has created the Prowler 2N4U-UM and Raptor CRSSAN2U3N high-performance servers, both designed to support one or three individual Gen4 canisters. These canisters are compatible between the two products, enabling you to quickly transfer data from movie locations to production/editing sites, providing reliable and fast storage solutions for media and entertainment professionals.

PROWLER RUGGED SERVER WITH 1 HOT-SWAP DRIVE CANISTERS

Data Sheet

RAPTOR 2U RUGGED SERVER WITH 3 HOT-SWAP DRIVE CANISTERS

Data Sheet

Prowler

4-Bay Server with single Hot-Swap NVMe Drive Canister.

It’s the only product on the market offering High Performance (14GBs), 10lbs and support storage capacities up to 120TB.

HIGHLIGHTS

  • High Performance Storage
    Equipped with fast AMD Ryzen 3 Processor or Optional AMD EPYC Zen 3 (Milan) CPU
    • High Bandwidth PCIe Gen4 NVMe Storage
    • Removable Storage Canister for easy backup process
  • Support AC or DC power input
  • Ruggedized design suitable for Aircraft, ship, land or in-vehicle storage system
  • Expansion Slots
  • One PCIe Gen4 X16 riser supporting 2x PCIe Gen4 X8 FHHL cards – 256Gbps IO bandwidth support 1x Broadcom 9560-16i PCIe Gen4 X8 tri- mode hardware RAID
  • One spare slot for NIC, such as 100Gb or dual-50Gb Ethernet
  • Power: 12V (22A) or 24V (11A) DC input Molex 6pin optional 280W AC/DC Power Adapter 85~264VAC 47~63Hz
  • Dimension:10.2” (D) x 11.8” (W) x 3.43” (H)

Prowler2N4U also a secure platform that support TPM (Trusted Platform Module) and data encryption using AES-256 encryption and TCG Opal for utmost data protection. In addition, all the drives also protected with RAID 0, 1, 10, 5, 6 for data integrity.



RAPTOR

The Cheetah RAID Raptor 2U is a powerful and high-performance server that is specially designed to meet the unique demands of the media and entertainment industry, as well as military and autonomous vehicle applications, even in harsh and challenging environments.

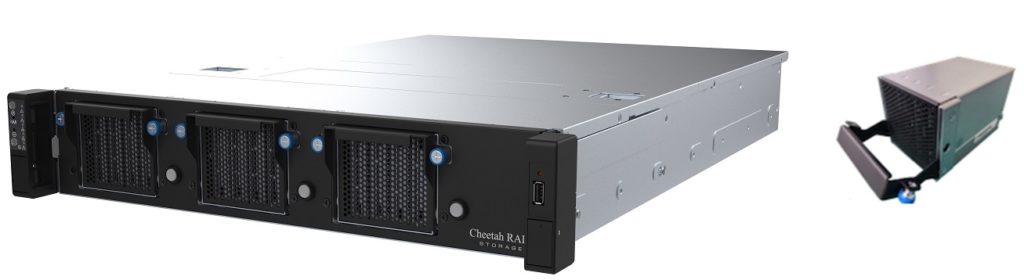

2U Server with Hot-Swap NVMe Drive Canister

General Specifications and advantages:

  • 2U form factor with 25” depth
  • 3x 4bay removable canisters, each with a dedicated RAID controller or PCIe host adapter for software RAID
  • Canister release button allowing software to be notified to gracefully shutdown the canister before canister is removed to prevent data corruption
  • Support PCIe Gen4 end-to-end, both on the SSDs and PCIe add-in-cards
  • UP AMD server MB with Milan CPU and up to 1TB of DDR4 3200 RAM
  • 3x100Gb Ethernet ports for fast upload to local IP-SAN or to the Cloud
  • 4x high-speed easy-swap 80x38mm fans to ensure NVMe SSDs are properly cooled under extreme environment conditions
  • Up to 369TB of storage capacity based on 12×30.72TB NVMe SSDs
  • Optional data encryption & TPM supported
  • 800W Platinum grade redundant power supply.

HIGHLIGHTS

  • High Performance Storage
    Equipped with fast AMD Ryzen 3 Processor or Optional AMD EPYC Zen 3 (Milan) CPU
    • High Bandwidth PCIe Gen4 NVMe Storage
    • Removable Storage Canister for easy backup process
  • Support AC or DC power input
  • Ruggedized design suitable for Aircraft, ship, land or in-vehicle storage system
  • Expansion Slots
  • One PCIe Gen4 X16 riser supporting 2x PCIe Gen4 X8 FHHL cards – 256Gbps IO bandwidth support 1x Broadcom 9560-16i PCIe Gen4 X8 tri- mode hardware RAID
  • One spare slot for NIC, such as 100Gb or dual-50Gb Ethernet
  • Power: 12V (22A) or 24V (11A) DC input Molex 6pin optional 280W AC/DC Power Adapter 85~264VAC 47~63Hz
  • Dimension:10.2” (D) x 11.8” (W) x 3.43” (H)
