4U GROUND RUGGED – NVMe All-in-One RAID Storage Server

4U Rugged Ground NVMe RAID (All-In-One) Commercial and Military Rugged Storage/Server Appliance

Part numbers:

CRS-HSR-4UC = rugged ground version
CRS-HSR-4UR = rugged version
NVMe High Speed RAID HSR Storage/Server in RUGGED and RUGGED GROUND versions. Up to 480TB PCIe NVMe flash storage PLUS Up to 6 x 2.5″ SATA HDDs or SSDs (front removable)

Introducing World Class 4U NVMe HSR Storage/Server Appliance
The CRS-HSR-4UR rugged version is deployed in broadcast trucks, ground stations and Surveillance, and Reconnaissance (ISR) applications
Deployed on military surveillance aircraft.

  • 4U rugged versions (Rugged tested to full MIL-SPEC)
  • 4 front removable canisters for easy swap.
  • Supports 6 front removable HDD or SSD 2.5” drive carriers.
  • 3 front hot swap power supplies
  • Interchangeable powers supplies between ground AC or Aircraft DC power supplies.
  • Supplies high-density PCIe NVMe flash, up to 480TB RAW * as larger drives are released we will support higher capacities.
  • Supports up to 8 million IOPS
  • Provides up to 40 GB/second throughput
  • Supports four 100Gb/s EDR InfinIBand, 100Gb/s
  • Ethernet interfaces •Supports iSCSI, FC and SRP protocols
  • IPMI system management •Supports WD ION Accelerator software
  • Dual Haswell motherboard with: Two E5-2680v3 12-core, 2.5GHz Embedded CPUs 1TB DDR4-2133 memory (512GB per CPU), 2 dual port Mellanox InfiniBand cards.

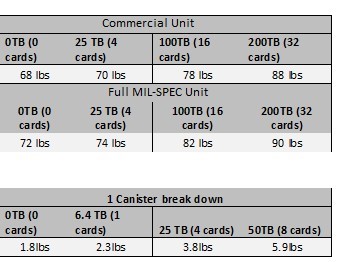

KEYS: Removable canister, Weight of 90lbs with 480TB, 1 canister 120TB 5.9lbs, Depth of 24” and of course Speed (40GBs)
MIL-STD: MIL-HDBK-5400, MIL-STD-461, MIL-STD-704E, MIL-STD-810F, MIL-STD-130, MIL -A-8625F, MIL- STD-7179, MIL-STD-889B

Specifications and Related Documents

Specifications

  • Dimensions 7″H x 17″W (19″ rackmount) x 24″D
  • Form Factor 4U rack mount
  • Usable Capacity* Up to 256TB PCle NVMe flash Ancillary Drives Up to 6 x 2.5″ SATA HDDs or SSDs (front removable drives)
  • Chassis Ruggedized Aluminum (Mil-spec) Steel (Commercial)
  • Power 3 Front hot swap Power Supply N+ 1 hot-swap power system. Interchangeable powers supplies between ground AC or Aircraft DC power supplies.
  • Environmental Temperature Operating: 10°C to 35°C Storage (non-operating): -20°C to 60°C System Monitoring IPMI system monitoring capabilities
  • Environmental Humidity Operating: 10% to 90% non-condensing Storage (non-operating): 5% to 95% non-condensing
  • Shock The CRS-HSR-4 shall be capable of continuous full performance after non-operational (power off) exposure to mechanical shock of± 1 Og, 11 msec, half-sine pulse, 3 shocks
    per axis each direction (a total of 18 shock pulses) (Lifetime exposure).
  • Vibration Operational: .00004-.01 g2/Hz Non-Operational: .00015-.06 g2/Hz
    MIL-STD MIL-HDBK-5400, MIL-STD-461, MIL-STD-704E, MIL-STD-810F, MIL-STD-130,
    MIL -A-8625F, MIL- STD-7179, MIL-STD-889B

* As newer larger PCIe drives capacities become available to the market we will support larger drives.

RELATED DOCUMENTS

DATASHEET 4U NVMe rugged high speed All-in-One Storage/Server Appliance
