Autonomous Vehicles Products

High Performance PROWLER/ RAPTOR Products!

Cheetah RAID Storage is the leader in building the SMALLEST, HIGH PERFORMANCE NVMe servers for the Autonomous vehicle markets!







Cheetah RAID has utilized its extensive experience in providing rugged and high-performance technology solutions to the military and adapted it for the AV (Automated Vehicle) market. Their servers are built to withstand harsh environmental conditions that are commonly faced by vehicles, such as collisions, potholes, and extreme temperatures, which would typically cause non-rugged systems to fail. These high-performance servers are designed specifically for unmanned and autonomous driving vehicles and are available in both turnkey solutions or customizable designs, making them suitable for both military and commercial/industrial applications.

Cheetah’s PROWLER High Performance products are specifically designed for the autonomous vehicle (AV) market to capture a density of sensor data at high rate, in extreme environments. It’s smaller form factor and footprint is perfectly suited for the trunk of a self-driving car, a military vehicle, or a studio truck. We can offer a removable drive canister for quick transport or via 100Gb Network offload.

Cheetah’s PROWLER autonomous server were specifically designed for autonomous vehicle in mind – but being a high performance Rugged Servers/JBOF they can used for use in many applications that needs to capturing a lot of data at a high rate of speed, in a rugged environment including Military applications and Media/Entertainment and Surveillance.

Our competitors in the AV market today are selling slower older technology, large footprint and call it state of the art technology.

Cheetah is the only manufacture in the AV market today offering NVMe storage and a removable drive canister for quick off loading.



*Cheetah RAID offers the flexibility to custom build high-performance servers that cater to the specific configuration needs and requirements of their customers. Additionally, all of their products can be branded with the logos of their customers, allowing for original equipment manufacturer (OEM) branding.

.

.

.

“Not only are we building a High Performance servers but delivering Performance numbers like 14GBs to 20GBs  in the smallest footprint and larger capacities from 60TB to 360TB.”

.

.

.

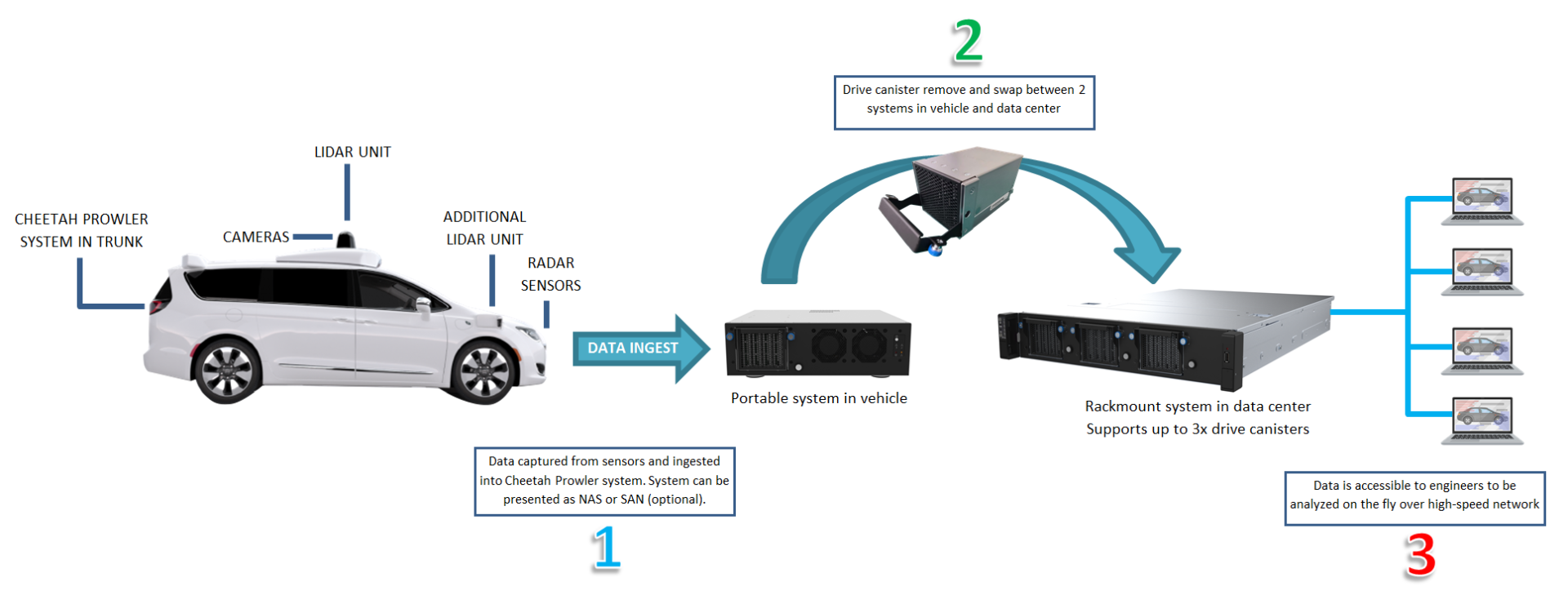

“AV sitting in a garage waiting for data to be offloaded via network is costly and time consuming.”

Install a fresh drive canister into the car and your off collecting data.

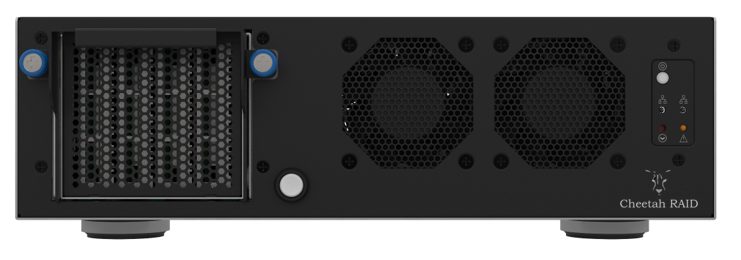

4 Bay NVMe Drive Server with Removable Drive Canister 120TB

4 BAY SERVER with removable drive canister Data Sheet

PROWLER  SERVER SPECIFICATIONS

Supported CPU: Supports Single Socket AMD Ryzen MB X570D4I-2T 8-Core, 3.6Hz. Optional 16 core available.

Supported RAM: Supports  up to 128GB

I/O Interface: 4x USB 3.0 ports; 1x VGA port(s); 1x COM Port;
2x 10GbE ports and 100Gb add-in card.

Expansion Slots: 1x PCIe Gen4

Drive Bays: 4 NVMe drives (in removable drive canister) Drive canister is hot-swap

Encryption Security Features:

  • Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED), and Self-Encrypting Drive (SED) with FIPS 140-2 validation or compliance.

Performance: 4 NVMe Drive Server 14GBs

Front Panel Display: Power On/Off switch & LED, Locate switch & LED,NMI switch, 2x LAN LED

Supported OS: Microsoft Windows Server 64bit 2012/R2, Windows 2016 64bit, Linux RHEL 7.4, SUSE 11 SP4 x64,
SUSE 12 SP2 x64, Ubuntu 16.04 x64, Ubuntu 17.04 x64

Power:  12VDC/DC (100W)

Weight: Gross: 10lbs with with 4 drives

Dimension: 4 Drive 11.63W x 3.30H x 10.16D

4 Bay NVMe Drive JBOF with Removable Drive Canister 120TB

4 BAY JBOF with removable drive canister Data Sheet

PROWLER  JBOF SPECIFICATIONS

Direct-attached JBOF via PCIe x16 connection



I/O Interface:

(1) 32-lane PCIe switch board supporting X16 external uplink and X16 downlink

(1) 48-lane PCIe switch board supporting X16 uplink and 5x X4 downlinks

(1) PDB

(1) 4-Bay U.2 X4 Backplane

(1) Network Management Module

Expansion Slots: 1x PCIe x16 Gen4 (for optional HW RAID Controller or other)

Drive Bays: 4 NVMe drives (in removable drive canister) Drive canister is hot-swap

Encryption Security Features:

  • Sanitize Instant Erase (SIE), Self-Encrypting Drive (SED), and Self-Encrypting Drive (SED) with FIPS 140-2 validation or compliance.

Performance: 4 NVMe Drive Server 14GBs

Front Panel Display: Power On/Off switch & LED, Locate switch & LED,
NMI switch, 2x LAN LED

Supported OS: Microsoft Windows Server 64bit 2012/R2, Windows 2016 64bit, Linux RHEL 7.4, SUSE 11 SP4 x64,
SUSE 12 SP2 x64, Ubuntu 16.04 x64, Ubuntu 17.04 x64

Power:  12VDC/DC (100W)

Weight: Gross: 10lbs with with 4 drives

Dimension: 4 Drive 11.63W x 3.30H x 10.16D

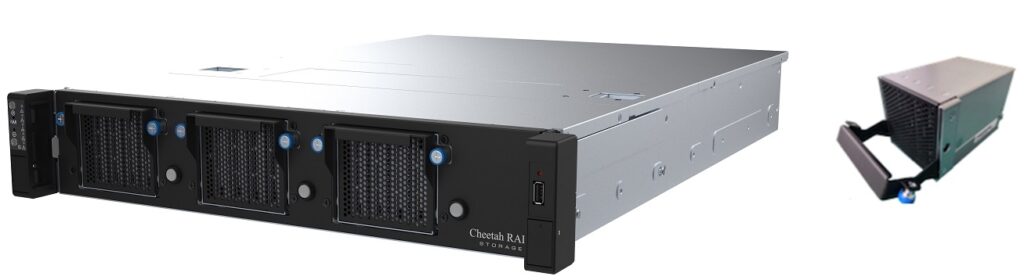

Ingest 2U 3 CANISTER (HOT-SWAP) HIGH PERFORMANCE NVME SERVER/STORAGE

Raptor

2U Server with Hot-Swap NVMe Drive Canister

DATA SHEET

General Specifications and advantages:

  • 2U form factor with 25” depth
  • 3x 4bay removable canisters, each with a dedicated RAID controller or PCIe host adapter for software RAID
  • Canister release button allowing software to be notified to gracefully shutdown the canister before canister is removed to prevent data corruption
  • Support PCIe Gen4 end‐to‐end, both on the SSDs and PCIe add‐in‐cards
  • UP AMD server MB with Milan CPU and up to 1TB of DDR4 3200 RAM
  • 3x100Gb Ethernet ports for fast upload to local IP‐SAN or to the Cloud
  • 4x high‐speed easy‐swap 80x38mm fans to ensure NVMe SSDs are properly cooled under extreme environment conditions
  • Up to 369TB of storage capacity based on 12×30.72TB NVMe SSDs
  • Optional data‐encryption & TPM supported
  • 800W Platinum‐grade redundant power supply
  • 26” Tool‐less ball‐bearing slide rails
