2U Rugged RRC24 RAID enclosure with removable canisters and NOW with Drive Encryption.

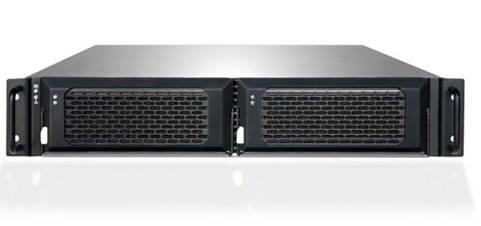

2U Rugged RAID System - NOW with Drive Encryption within the RAID controller
Part number : RRC24-xx
Features redundant RAID controllers, dual power supplies and fans with up time figures to 99.999% availability.

Featuring a capacity of twenty four drives, which includes two easily removable magazines containing up to twelve solid state disk or hard disk drives, each housed in rugged 2U panel height, 19.5” deep enclosure. It provides up to eight host ports of 16Gb Fibre Channel, 12GB SAS or 10GB ISCSI to SAS or SATA devices over a 12Gb SAS internal bus.The RRC24 Series scales up to 192 drives and allows customers to freely mix drive types, including HDD and SSD, for the most effective allocation of storage resources, based on capacity and performance needs.

Specifications and Related Documents

Specifications

  • SUPPORTED HOST INTERFACES
    Fibre Channel: 4, 8 and 16Gb/sec FC
    SAS: 6 and 12Gb/sec Serial Attached SCSI
    ISCSI: 10GigE iSCSI CONFIGURATION Host OS Independent
  • Single or Dual Hardware RAID
    Up to 24 SAS/SATA Storage Devices
    2 Redundant Hot-swap 650W Power Supplies
    4 Redundant 80 CFM Hot-swap Cooling Fans
  • RAID OPERATION
    RAID Levels 0, 1, 3, 5, 6, 10, 50, 60, NRAID and J-BOD
    Cache Up to 2GB per controller
    Cache Backup Yes, battery free
    Virtual Disks per system 32
    Partitions per vitual disk 128
  • MANAGEMENT
    Consoles WEB GUI, CLI, Array
    Administrator
    Interface Types Mini DB9 RS232, 10/100
    Ethernet
    Protocol Support SNMP, SSL, SSH, SMTP
    Management Software R/USC RAID
  • ELECTRICAL
    AC Input Power 90 to 264 VAC
    40 to 440HZ Input Current 3.3A (115 VAC),
    1.7A (230 VAC)
  • INTEROPERABILITY
    Compatible with FC-SW-2 compliant switches Management interoperability with leading SAN management applications
  • PHYSICAL
  • Height: 3.5” – 2U
  • Weight 40 lbs (unpopulated) Width: 17.50” body
  • Depth: 19.52” Rack mount flange to chassis rear panel
  • ENVIRONMENTAL
  • Shock & Vibration
  • Operating Shock 60 Gs @ 2 msec Nonoperating Shock 300 Gs @ 2 msec Operating Vibration 3.0 Gs @ 10 to 500Hz
  • Nonoperating Vibration 7.0 Gs @ 22 to 500Hz
  • ENVIRONMENTAL (Solid State Disks) Temperature/Humidity-20 to 70 Degrees C (operational) -40 to 70 Degrees C (non-operational)
  • 5% to 95% non-condensing Altitude 0 to 45,000 ft (operational, non-operational)
  • *Optional SSD capable of 42,000 ft
  • ENVIRONMENTAL (Rotating Disks) Temperature 5 to 70 Degrees C (operational)
  • -40 to 70 Degrees C (non-operational) Altitude 0 to 10,000 ft (operational) 0 to 40,000 ft (non-operational)
  • EMC COMPLIANCE
  • FCC 15.109:2006 Class A (Radiated Emissions) FCC 15.107:2006 Class A (Conducted Emissions)
  • MIL-STD-461: RS103, RE102, CE102, CS114

RELATED DOCUMENTS

DATASHEET RRC24-2U Rugged RAID Removable Canisters
