3U COTS COTS NVMe RAID Flash Storage Array

3U COTS COTS NVMe RAID Flash Storage Array
CRS-PCIeG3-3US-32-xx

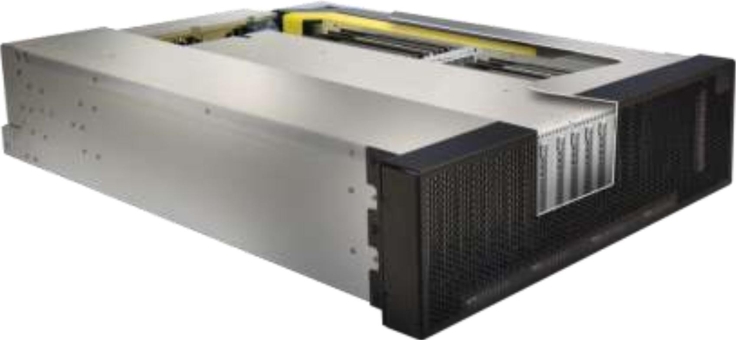

Has 32 ioScale modules in four individually removable sleds

The Cheetah Flash Storage Array provides 153.6TB+ Flash storage using enterprise Flash from major PCIE manufacturers. The FSA cables to one to four host computers through PCIe x16 Gen3 connections operating at 128Gb/s bandwidth (or 40GBs total). The low-profile, half-length cable adapters support low latency and extreme bandwidth to the NVMe Flash Memory Cards. The small footprint, removable sleds and light weight allows easy one-person installation in data centers, airborne ISR platforms, mobile shelters and portable transit cases. The 3U x 18” x 3.4” memory sleds fit easily into an available roll-aboard style locking transportation case or standard data safe to protect your investment and your data in highly secure environments.

Features:

  • 3U High
  • Four removable canisters with eight flash memory cards each
  • Fully IPMI v2.0 compliant monitoring, control & alarming system
  • Two 1,200-watt rear removable, hot-swap supplies
  • Superior Cooling with four 80 x 80 x 38mm fans on the rear of the enclosure
  • Up to four PCIe x16 cable inputs to rear of enclosure
Specifications and Related Documents

Specifications

Enclosure

  • Dimensions: 17″W x 5.25″ H x 24″0
  • Supports 32 half-length, full-height, single-slot PCIe x16 NAND FLASH boards
  • All 32 boards face the front of the chassis with the front 16 NAND flash boards having I/O bracket access and the rear 16 boards do not have I/O bracket access
  • Removable front bezel with air filter (can be customized for special 1/0 bracket access)
  • Front panel LEDs
  • Four rear pan el PCIe x16 Gen3 cable interfaces
  • 4 removable rear fans behind a single fan bezel
  • Weight: 521bs when fully loaded with 32 NANO Flash boards

Main Backplane

  • Four PCIe x16 cable inputs to rear of enclosure
  • Four PCIe x16 high-density connectors to each canister
  • 1x PLX PEX 8796 and 2 x PLX PEX 8749 PCIe 3.0 switches manage PCIe cross connects from cables to canisters
  • 2x RJ45 connectors for IPMI v2.0 System Monitor
  • 1x HD DB-9 serial port for IPMI network configuration
  • Optional RJ45 for basic SYSMON2 chassis monitor (not required when using IPMI System Monitor)
  • Supports bus-bar power distribution to the canisters through 8 high-power bladed connectors (2 per canister)
  • On board IPMI System Monitor & SYSMON2 connectors

Center Backplane

  • 8x PCIe 3.0 slots in 2 ranks of 4 each. 2 slots are x16, 6 slots are x8
  • All x8 connectors are “open back’1 style. All but rear slot 4 can support xl 6 physical cards in the x8 connector
  • 1x 8-Pin 12V power connectors for AUX power cables
  • PLX PEX 8796 PCIe 3.0 switch

Power

  • 1200W redundant power subsystem
  • Two 1,200-watt rear removable, hot-swap supplies
  • Each supply measures 1 U (1.65’1 x 3.3’1 x 10.6″
  • 1+1 redundant with full current sharing operation
  • +12V and +5Vsby voltage outputs
  • All +12V power rails shared on copper bus bar delivery system

AC Input Version

  • 1,200W each at 90-264 VAC, 15A max input
  • Operates with 1+1 redundancy
  • IEC C14 power input at rear on each supply with optional power cord retention clip

-48V nominal DC Input Version

  • 1,200W each at -45 to -60 VDC, 40A max input
  • Operates with 1+1 redundancy at this voltage input range
  • Molex terminal block input on each supply

Low Voltage DC Input Version

  • 450W each at -28 to -36 VDC, 22A max input
  • Operates with no redundancy at this voltage input range
  • Molex terminal block input on each supply
  • Fully loaded 32-NAND Flash chassis draws approximately 900W typical.
  • Inquire about our 4U chassis if more power is required.

Power Cords

  • 110V power cord for PDUs and Wall receptacles
  • CRS Part number: CRS-CBL-PWR-5-15-C13-15A-6
  • NEMA 5-15 to IEC C13, Straight, 14AWG, 15A, 6′
  • 240V power cord for PDUs
  • CRS Part number: CRS-CBL-PWR-C14-C13-15A-6
  • IEC C14 to IEC C13, Straight, 14AWG, 15A, 6′
  • 240V power cord for US Wall receptacles
  • CRS Part number: CRS-CBL-PWR-6-15-C13-15A-6
  • NEMA 6-15 to IEC C13, Straight, 14AWG, 15A, 6′

System Monitoring

Fully IPMI v2.0 compliant monitoring, control & alarming system

Temperature

  • Monitors inlet & exhaust temps
  • Fan speed auto adjusts by temp
  • Alarm set-points for over temp

Fans

  • Monitors all system fan tachometers
  • Pulse Width Modulation fan speed control
  • Alarms for slow or failed fans

Power

  • Monitors supply telemetry
  • Monitors output voltage rails
  • Alarms for voltages out of range
  • Alarms for supply failure

Add-in Cards

  • Optionally monitors add-in card I2C SM bus (if used)
  • Optional Alarms for abnormal card telemetry

Interface

  • Command Line Interface or web Graphical User Interface
  • Supports SNMP and RCMP+ external interfaces
  • Remote chassis and canister LED tagging

Air Filter

  • 30 ppi open cell polyfoam (other ppi ratings available)
  • Die-cut, removable and replaceable

Cooling

  • Four 80 x 80 x 38mm fans on the rear of the enclosure
  • All fans are 143CFM each in pull-through configuration
  • All fans PWM monitored and speed controlled by the IPMI system monitor
  • Rear fans hot-swap from rear of the chassis after removing fan bezel
  • Power supplies separately cooled from internal 25mm fans

Operating Environmental

  • Temperature range:
    • Operating: 10°-35°C
    • Storage: -40°- 85°C
  • Humidity range:
    • Operating: 20% to 80% relative (non-condensing)
    • Non-operating: 5% to 95% relative (non-condensing)
  • Altitude range:
    • Operating: 0 to 10,000 ft.
    • Storage: 0 to 50,000 ft.

Agency Compliance

Designed to meet the following agency certifications with testing currently pending:

  • FCC – Part 15 of the FCC Rules, Class A, 47CFR
  • Canada ICES-003, issue 4, Class A UL/IEC 60950-1
  • Canada: CSA C22.2 No. 60950-1
  • Argentina: IEC60950-1
  • Japan: VCCI, Class A
  • Australia/New Zealand AS/NZS CISPR 22, Class A
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2, EN61000-3-3)
  • CISPR 22, CISPR 24, Class A
  • CE Emissions 2004-108EC
  • RoHS compliance (Directive 2002/95/EC)
  • CCN NWGQ, NWGQ7

Designed to Meet the Following Agency Requirements:

a) EMI: FCC Class A & CE
b) Safety: CE, CUL and UL

Designed to Meet MIL-STD 810G Environmental Standards:

a) Test Method 500.5 Low Pressure (Altitude) – Procedure I & II, 3,300m (10,000ft) 10m/s rate
b) Test Method 501.5 High Temperature – Procedure I @ 70°C, II @ 65°C & III (without cards installed)
c) Test Method 502.5 Low Temperature – Procedure I & II @ 0°C (without cards installed)
d) Test Method 503.5 Temperature Shock – Procedure I A-C 10°C/min
e) Test Method 506.5 Rain – Procedure I 1.7mm/min and III 280 l/m2/hr (for canisters stored in Pelican cases only using Pelican’s test data)
f) Test Method 507.5 Humidity – Procedure I & II to 90% RH
g) Test Method 508.6 Fungus – No carbon containing materials
h) Test Method 509.5 Salt Fog – Available non-operating with conformal coated option of product (without add-in cards)
i) Test Method 510.5 Sand and Dust – Procedure I for entire system operating and Procedure II for canisters in Pelican case non-operating only
j) Test Method 511.5 Explosive Atmosphere – Procedure I for canisters in Pelican case, nonoperating only
k) Test Method 512.5 Immersion – Procedure I & II for canisters in Pelican case, non-operating only
l) Test Method 513.6 Acceleration – Procedure I, II and III (all other items) for Aircraft
m) Test Method 514.6 Vibration – Category 13 Procedure I & II 10-2000Hz 0.3g2/Hz
n) Test Method 515.6 Acoustic Noise – Procedure I, II & III 130dB for 30 min
o) Test Method 516.6 Shock – Procedure I 20g & IV (canisters in Pelican case) 20g, 5-2000Hz at 23ms duration (without cards installed)
p) Test Method 520.3 Temperature, Humidity, Vibration, and Altitude – Procedure III to limit above
