2U Rugged Sort Depth NVMe Server/Storage Enclosure with two Removable Magazines

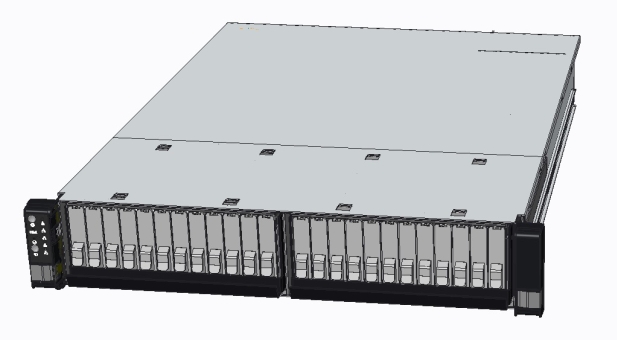

2U Short Depth Rugged NVMe Server/Storage Enclosure with two Removable Magazines
Part number : NVMe-RSM2024E
Short depth designed for aircraft and ground vehicles, capable of 4G Vibration, 20G+ Shock.

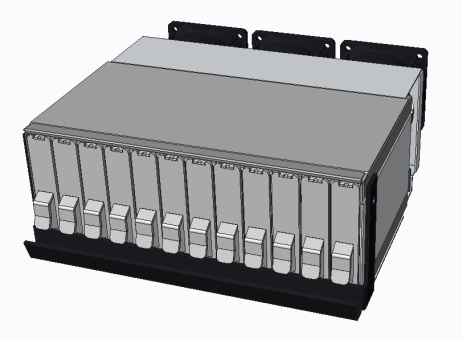

12 pack canister

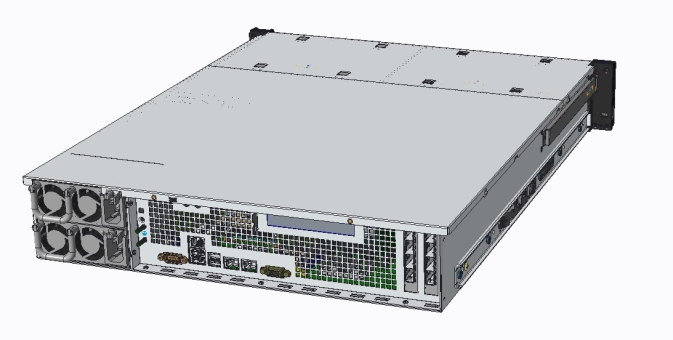

rear view cover on

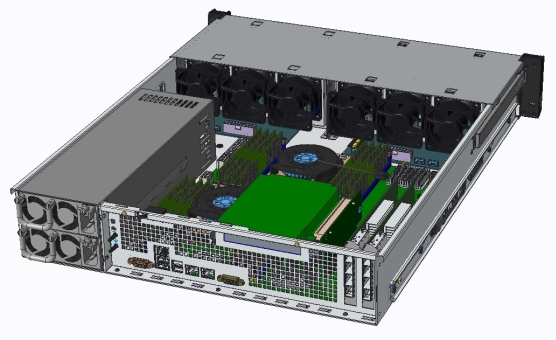

rear view cover off

The NVMe-RSM2024E 2U NVMe server/storage 23″ D with two 12-drive Magazines for a total of 24x of the fastest drives on the market today using U.2 NVMe PCIe x4 SSDs. The RSM2024 supports a DP Xeon E5-2600v4MB. Also, this enclosure has a 400Hz AC power with 1010W output (Redundant Power supply). It was specifically designed with aircraft applications in mind. This server is ideal for C4ISR, Cyber Security aircraft or ground Vehicles. Rugged design capable of 4G Vibration, 20G+ Shock and 50C Operation (temp could be negotiated)The RSM2024 supports TCG compliant and FIPS 140-2 certified encryption, secure erase and certified to military specification

Key Features:

  • Support dual Intel® Xeon® E5-2600v4/v3 Broadwell/Haswell
  • 2x 12-SSD canisters for quick removable
  • Supporting up to 1TB DDR4 2400 RAM
  • Up to 4x 40/50/100GbE IB ports
  • Up to 8x 16GbFC ports
  • 16x 10GbE ports
  • 2x 2.5”-7mm SSD or SATA DOMs for OS boot disks
  • Up to 231GB/s (250Gbps) sustained read throughput and up to 3.6M IOPS
  • Support up to 2x Low Profile PCIe3 x16 Expansion slots and PCIe3 x8 IOM
Specifications and Related Documents

Specifications

System Details
Requirements:

  • 2U Height
  • Shortest depth possible
  • Rackmount
  • Rugged design capable of 4G Vibration, 20G+ Shock and 50C Operation (temp could be negotiated)
  • Dual E5 class server board. Supermicro or Intel
  • Two front loadable drive canisters, each containing 12+/- NVMe SSD Drives (which can be fixed in the drive canister).
  • Canisters should lock into place with positive retention hardware
  • Dual rear removable 2.5” System drives
  • AC Redundant Power supply supporting 400Hz

Configuration:

  • 2U Rackmount Chassis
  • 2x front removable canister with fans and PCIe switch boards for easier serviceability
  • Support up to 24x 2.5”-15mm PCIe3 X4 NVMe SSD
  • 2x 12x SSDs plus 2x 32-lane PCIe switches per removable canister with total PCIe3 X32 uplinks to the host
  • Targeted motherboard is Supermicro X10DRH-i supporting dual E5-2600
  • Support 1x PCIe3 X16 FHHL plus 2x PCIe3 X8 HHHL add-in cards
  • 1010W redundant PSU with 115AC input supporting 400Hz
  • Targeted TDP is around 95W
  • Chassis depth is around 22.5”
